A mechanism for binding ruby types to C++ types. More...

#include <Data_Type_defn.hpp>

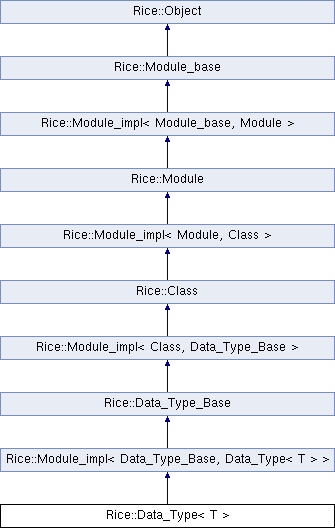

Inheritance diagram for Rice::Data_Type< T >:

Public Types
typedef T	Type
	The C++ type being held.

Public Types inherited from Rice::Data_Type_Base
typedef std::map< VALUE, detail::Abstract_Caster * >	Casters

Public Member Functions
	Data_Type ()
	Default constructor which does not bind. More...

	Data_Type (Module const &v)
	Constructor which takes a Module. More...

virtual	~Data_Type ()
	Destructor.

virtual Data_Type &	operator= (Module const &klass)
	Assignment operator which takes a Module. More...

template<typename Constructor_T >
Data_Type< T > &	define_constructor (Constructor_T constructor, Arguments *arguments=0)
	Define a constructor for the class. More...

template<typename Constructor_T >
Data_Type< T > &	define_constructor (Constructor_T constructor, Arg const &arg)

template<typename Director_T >
Data_Type< T > &	define_director ()
	Register a Director class for this class. More...

virtual detail::Abstract_Caster *	caster () const

Public Member Functions inherited from Rice::Module_impl< Data_Type_Base, Data_Type< T > >
	Module_impl (T const &arg)

Data_Type< T > &	add_handler (Functor_T functor)
	Define an exception handler. More...

Data_Type< T > &	define_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define an instance method. More...

Data_Type< T > &	define_method (Identifier name, Func_T func, Arg const &arg)

Data_Type< T > &	define_singleton_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define a singleton method. More...

Data_Type< T > &	define_singleton_method (Identifier name, Func_T func, Arg const &arg)

Data_Type< T > &	define_module_function (Identifier name, Func_T func, Arguments *arguments=0)
	Define a module function. More...

Data_Type< T > &	define_module_function (Identifier name, Func_T func, Arg const &arg)

Data_Type< T > &	define_iterator (Iterator_T(T::begin)(), Iterator_T(T::end)(), Identifier name="each")
	Define an iterator. More...

Data_Type< T > &	include_module (Module const &inc)
	Include a module. More...

Data_Type< T > &	const_set (Identifier name, Object value)
	Set a constant. More...

Object	const_get (Identifier name) const
	Get a constant. More...

bool	const_defined (Identifier name) const
	Determine whether a constant is defined. More...

void	remove_const (Identifier name)
	Remove a constant. More...

Module	define_module (char const *name)
	Define a module under this module. More...

Class	define_class (char const *name, Object superclass=rb_cObject)
	Define a class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Public Member Functions inherited from Rice::Data_Type_Base
	Data_Type_Base ()
	Default constructor.

	Data_Type_Base (VALUE v)
	Constructor.

virtual	~Data_Type_Base ()=0
	Destructor.

Public Member Functions inherited from Rice::Module_impl< Class, Data_Type_Base >
	Module_impl (T const &arg)

Data_Type_Base &	add_handler (Functor_T functor)
	Define an exception handler. More...

Data_Type_Base &	define_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define an instance method. More...

Data_Type_Base &	define_method (Identifier name, Func_T func, Arg const &arg)

Data_Type_Base &	define_singleton_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define a singleton method. More...

Data_Type_Base &	define_singleton_method (Identifier name, Func_T func, Arg const &arg)

Data_Type_Base &	define_module_function (Identifier name, Func_T func, Arguments *arguments=0)
	Define a module function. More...

Data_Type_Base &	define_module_function (Identifier name, Func_T func, Arg const &arg)

Data_Type_Base &	define_iterator (Iterator_T(T::begin)(), Iterator_T(T::end)(), Identifier name="each")
	Define an iterator. More...

Data_Type_Base &	include_module (Module const &inc)
	Include a module. More...

Data_Type_Base &	const_set (Identifier name, Object value)
	Set a constant. More...

Object	const_get (Identifier name) const
	Get a constant. More...

bool	const_defined (Identifier name) const
	Determine whether a constant is defined. More...

void	remove_const (Identifier name)
	Remove a constant. More...

Module	define_module (char const *name)
	Define a module under this module. More...

Class	define_class (char const *name, Object superclass=rb_cObject)
	Define a class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Public Member Functions inherited from Rice::Class
	Class ()

	Class (VALUE v)
	Construct a new class wrapper from a ruby object of type T_CLASS.

Class &	undef_creation_funcs ()
	Disallow creation of an instance from Ruby code. More...

Public Member Functions inherited from Rice::Module_impl< Module, Class >
	Module_impl (T const &arg)

Class &	add_handler (Functor_T functor)
	Define an exception handler. More...

Class &	define_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define an instance method. More...

Class &	define_method (Identifier name, Func_T func, Arg const &arg)

Class &	define_singleton_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define a singleton method. More...

Class &	define_singleton_method (Identifier name, Func_T func, Arg const &arg)

Class &	define_module_function (Identifier name, Func_T func, Arguments *arguments=0)
	Define a module function. More...

Class &	define_module_function (Identifier name, Func_T func, Arg const &arg)

Class &	define_iterator (Iterator_T(T::begin)(), Iterator_T(T::end)(), Identifier name="each")
	Define an iterator. More...

Class &	include_module (Module const &inc)
	Include a module. More...

Class &	const_set (Identifier name, Object value)
	Set a constant. More...

Object	const_get (Identifier name) const
	Get a constant. More...

bool	const_defined (Identifier name) const
	Determine whether a constant is defined. More...

void	remove_const (Identifier name)
	Remove a constant. More...

Module	define_module (char const *name)
	Define a module under this module. More...

Class	define_class (char const *name, Object superclass=rb_cObject)
	Define a class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Public Member Functions inherited from Rice::Module
	Module ()
	Default construct a Module and initialize it to rb_cObject.

	Module (VALUE v)
	Construct a Module from an existing Module object.

String	name () const
	Return the name of the module.

void	swap (Module &other)
	Swap with another Module.

Array	ancestors () const
	Return an array containing the Module's ancestors. More...

Class	singleton_class () const
	Return the module's singleton class. More...

Public Member Functions inherited from Rice::Module_impl< Module_base, Module >
	Module_impl (T const &arg)

Module &	add_handler (Functor_T functor)
	Define an exception handler. More...

Module &	define_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define an instance method. More...

Module &	define_method (Identifier name, Func_T func, Arg const &arg)

Module &	define_singleton_method (Identifier name, Func_T func, Arguments *arguments=0)
	Define a singleton method. More...

Module &	define_singleton_method (Identifier name, Func_T func, Arg const &arg)

Module &	define_module_function (Identifier name, Func_T func, Arguments *arguments=0)
	Define a module function. More...

Module &	define_module_function (Identifier name, Func_T func, Arg const &arg)

Module &	define_iterator (Iterator_T(T::begin)(), Iterator_T(T::end)(), Identifier name="each")
	Define an iterator. More...

Module &	include_module (Module const &inc)
	Include a module. More...

Module &	const_set (Identifier name, Object value)
	Set a constant. More...

Object	const_get (Identifier name) const
	Get a constant. More...

bool	const_defined (Identifier name) const
	Determine whether a constant is defined. More...

void	remove_const (Identifier name)
	Remove a constant. More...

Module	define_module (char const *name)
	Define a module under this module. More...

Class	define_class (char const *name, Object superclass=rb_cObject)
	Define a class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Data_Type< T >	define_class (char const *name)
	Define a new data class under this module. More...

Public Member Functions inherited from Rice::Module_base
	Module_base (VALUE v=rb_cObject)

	Module_base (Module_base const &other)

Module_base &	operator= (Module_base const &other)

void	swap (Module_base &other)

Public Member Functions inherited from Rice::Object
	Object (VALUE value=Qnil)
	Encapsulate an existing ruby object.

	Object (Object const &other)
	Copy constructor.

virtual	~Object ()
	Destructor.

bool	test () const

	operator bool () const

bool	is_nil () const
	Returns true if the object is nil, false otherwise.

	operator VALUE () const
	Implicit conversion to VALUE.

VALUE const volatile &	value () const
	Explicitly get the encapsulated VALUE.

Class	class_of () const
	Get the class of an object. More...

int	compare (Object const &other) const
	Compare this object to another object. More...

String	to_s () const
	Return a string representation of an object. More...

String	inspect () const
	Inspect the object. More...

void	freeze ()
	Freeze the object.

bool	is_frozen () const
	Determine if the object is frozen. More...

void	swap (Object &other)
	Swap with another Object.

Object	instance_eval (String const &s)
	Evaluate the given string in the context of the object. More...

int	rb_type () const
	Return the type of the underlying C object. More...

bool	is_a (Object klass) const
	Determine whether the object is an instance of a class/module. More...

bool	respond_to (Identifier id) const
	Determine if the objects responds to a method. More...

bool	is_instance_of (Object klass) const
	Determine whether class is the object's class. More...

template<typename T >
void	iv_set (Identifier name, T const &value)
	Set an instance variable. More...

Object	iv_get (Identifier name) const
	Get the value of an instance variable. More...

Object	attr_get (Identifier name) const
	Get the value of an instance variable, but don't warn if it is. More...

template<typename ... ArgT>
Object	call (Identifier id, ArgT... args) const
	Call the Ruby method specified by 'id' on object 'obj'. More...

Object	vcall (Identifier id, Array args)
	Vectorized call. More...

void	mark () const
	Mark the object with the garbage collector.

Static Public Member Functions
static Module	klass ()
	Explictly return the Ruby type. More...

static T *	from_ruby (Object x)
	Convert ruby object x to type T. More...

static bool	is_bound ()
	Determine if the type is bound. More...

Static Public Member Functions inherited from Rice::Data_Type_Base
static Casters &	casters ()

Static Public Attributes
static std_unique_ptr< detail::Abstract_Caster >	caster_

Static Protected Member Functions
template<typename Base_T >
static Data_Type	bind (Module const &klass)
	Bind a Data_Type to a VALUE. More...

Friends
template<typename T_ >
Rice::Data_Type< T_ >	define_class_under (Object module, char const *name)
	Define a new data class in the namespace given by module. More...

template<typename T_ , typename Base_T_ >
Rice::Data_Type< T_ >	define_class_under (Object module, char const *name)
	Define a new data class in the namespace given by module. More...

template<typename T_ >
Rice::Data_Type< T_ >	Rice::define_class (char const *name)

template<typename T_ , typename Base_T_ >
Rice::Data_Type< T_ >	define_class (char const *name)
	Define a new data class in the default namespace. More...

Additional Inherited Members
Protected Member Functions inherited from Rice::Module_base
template<typename Exception_T , typename Functor_T >
void	add_handler (Functor_T functor)

Object	handler () const

Protected Member Functions inherited from Rice::Object
void	set_value (VALUE v)
	Set the encapsulated value.

template<typename ... ArgT>
std::vector< VALUE >	convert_args (ArgT &... args) const
	Unpack the provided arguments and convert them all to Ruby types.

Detailed Description

template<typename T>
class Rice::Data_Type< T >

A mechanism for binding ruby types to C++ types.

This class binds run-time types (Ruby VALUEs) to compile-time types (C++ types). The binding can occur only once.

Constructor & Destructor Documentation

◆ Data_Type() [1/2]

template<typename T >

Rice::Data_Type< T >::Data_Type ( )

Default constructor which does not bind.

No member functions must be called on this Data_Type except bind, until the type is bound.

◆ Data_Type() [2/2]

template<typename T >

Rice::Data_Type< T >::Data_Type ( Module const & v )

Constructor which takes a Module.

Binds the type to the given VALUE according to the rules given above.

Parameters

klass the module to which to bind.

Member Function Documentation

◆ bind()

template<typename T >

template<typename Base_T >

static Data_Type Rice::Data_Type< T >::bind ( Module const & klass )

staticprotected

Bind a Data_Type to a VALUE.

Throws an exception if the Data_Type is already bound to a different class. Any existing instances of the Data_Type will be bound after this function returns.

Parameters

klass the ruby type to which to bind.

Returns: *this

◆ define_constructor()

template<typename T >

template<typename Constructor_T >

Data_Type<T>& Rice::Data_Type< T >::define_constructor	(	Constructor_T	constructor,
		Arguments *	arguments = `0`
	)

Define a constructor for the class.

Creates a singleton method allocate and an instance method called initialize which together create a new instance of the class. The allocate method allocates memory for the object reference and the initialize method constructs the object.

Parameters

constructor

an object that has a static member function construct() that constructs a new instance of T and sets the object's data member to point to the new instance. A helper class Constructor is provided that does precisely this. For example:

define_class<Foo>("Foo")

.define_constructor(Constructor<Foo>());

◆ define_director()

template<typename T >

template<typename Director_T >

Data_Type<T>& Rice::Data_Type< T >::define_director ( )

Register a Director class for this class.

For any class that uses Rice::Director to enable polymorphism across the languages, you need to register that director proxy class with this method. Not doing so will cause the resulting library to die at run time when it tries to convert the base type into the Director proxy type, and cannot find an appropriate Caster.

This method takes no arguments, just needs the type of the Director proxy class.

For example:

class FooDirector : public Foo, public Rice::Director {
  ...
};

define_class<Foo>("Foo")
  .define_director<FooDirector>()
  .define_constructor(Constructor<FooDirector, Rice::Object>());

◆ from_ruby()

template<typename T >

static T* Rice::Data_Type< T >::from_ruby ( Object x )

static

Convert ruby object x to type T.

Parameters

x	the object to convert.

Returns: the C++ object wrapped inside object x.

◆ is_bound()

template<typename T >

static bool Rice::Data_Type< T >::is_bound ( )

static

Determine if the type is bound.

Returns: true if the object is bound, false otherwise.

◆ klass()

template<typename T >

static Module Rice::Data_Type< T >::klass ( )

static

Explictly return the Ruby type.

Returns: the ruby class to which the type is bound.

◆ operator=()

template<typename T >

virtual Data_Type& Rice::Data_Type< T >::operator= ( Module const & klass )

virtual

Assignment operator which takes a Module.

Parameters

klass must be the class to which this data type is already bound.

Returns: *this

Friends And Related Function Documentation

◆ define_class

template<typename T >

template<typename T_ , typename Base_T_ >

Rice::Data_Type<T_> define_class ( char const * name )

friend

Define a new data class in the default namespace.

The class will have a base class of Object.

Parameters

T	the C++ type of the wrapped class.

Returns: the new class.

The class with have a base class determined by Base_T (specifically, Data_Type<Base_T>::klass). Therefore, the type Base_T must already have been registered using define_class<> or define_class_under<>.

Parameters

T	the C++ type of the wrapped class.
module	the the Module in which to define the class.

Returns: the new class.

◆ define_class_under [1/2]

template<typename T >

template<typename T_ >

Rice::Data_Type<T_> define_class_under	(	Object	module,
		char const *	name
	)

friend

Define a new data class in the namespace given by module.

The class will have a base class of Object.

Parameters

T	the C++ type of the wrapped class.
module	the the Module in which to define the class.

Returns: the new class.

The class with have a base class determined by Base_T (specifically, Data_Type<Base_T>::klass). Therefore, the type Base_T must already have been registered using define_class<> or define_class_under<>.

Parameters

T	the C++ type of the wrapped class.
module	the the Module in which to define the class.

Returns: the new class.

◆ define_class_under [2/2]

template<typename T >

template<typename T_ , typename Base_T_ >

Rice::Data_Type<T_> define_class_under	(	Object	module,
		char const *	name
	)

friend

Define a new data class in the namespace given by module.

The class will have a base class of Object.

Parameters

T	the C++ type of the wrapped class.
module	the the Module in which to define the class.

Returns: the new class.

The class with have a base class determined by Base_T (specifically, Data_Type<Base_T>::klass). Therefore, the type Base_T must already have been registered using define_class<> or define_class_under<>.

Parameters

T	the C++ type of the wrapped class.
module	the the Module in which to define the class.

Returns: the new class.

The documentation for this class was generated from the following file:

Data_Type_defn.hpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

template<typename T> class Rice::Data_Type< T >

Constructor & Destructor Documentation

◆ Data_Type() [1/2]

◆ Data_Type() [2/2]

Member Function Documentation

◆ bind()

◆ define_constructor()

◆ define_director()

◆ from_ruby()

◆ is_bound()

◆ klass()

◆ operator=()

Friends And Related Function Documentation

◆ define_class

◆ define_class_under [1/2]

◆ define_class_under [2/2]

template<typename T>
class Rice::Data_Type< T >
